SKU: 000441
Regular price
$659.99
Sale price
$659.99
Description

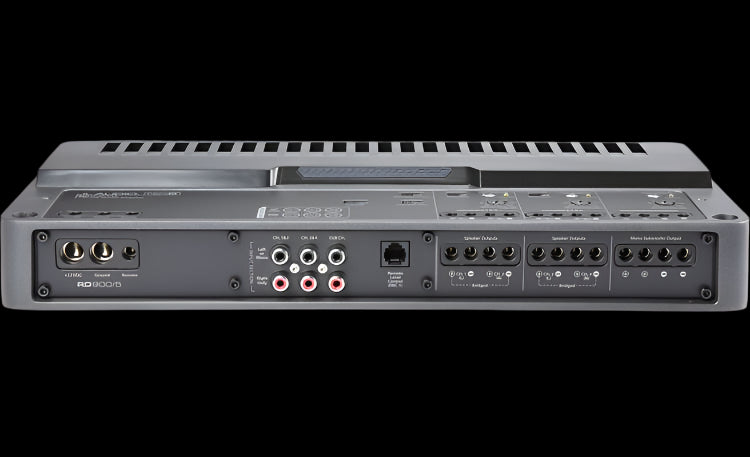

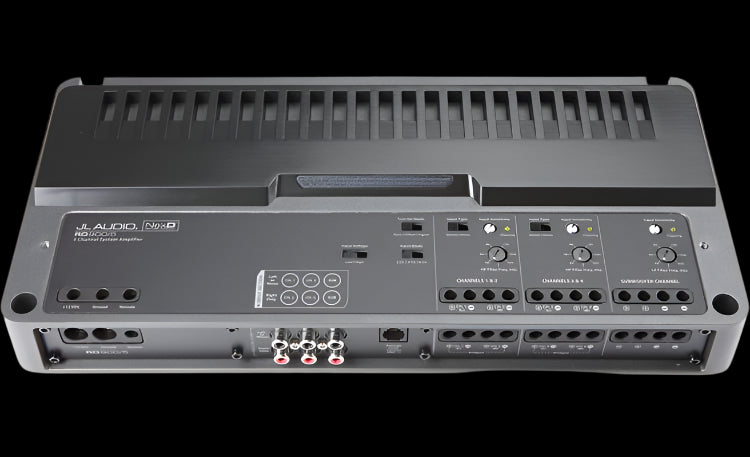

5-Channel Class D System Amplifier, 70 W x 4 @ 4 Ω + 500 W x 1 @ 2 Ω - 14.4V
Product highlights:
Featured in our article: Best multi-channel car amplifiers for 2025
5-channel car amplifier
70 watts RMS x 4 + 225 watts RMS x 1 at 4 ohms
100 watts RMS x 4 + 500 watts RMS at 2 ohms
200 watts RMS x 2 bridged at 4 ohms (4-ohm stable in bridged mode) + 500 watts RMS at 2 ohms
Class D amplifier design with NextD™ switching amp technology
differential-balanced inputs help eliminate noise
variable high-pass filters (50-500 Hz, 12 dB/octave) on front and rear channels
variable low-pass filter (50-500 Hz, 12 dB/octave) on subwoofer channel
LED clip lights help set gain
Other Features:
blue LED accent lighting
optional wired remote level control for subwoofer channel
preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input)
4-gauge power and ground leads and 80-amp fuse recommended — wiring and hardware not included with amplifier
no onboard fuses — when installing multiple amps in a system, an additional 80-amp in-line fuse between the distribution block and the amplifier is recommended
14-11/16"W x 2-3/16"H x 7"D
warranty: 2 years
What's in the box:
5-Channel amplifier
2.5mm Allen wrench
Self-adhesive JL Audio badge
Owner's manual
View more
