XAV-9500ES

Sony XAV-9500ES

Product highlights:

• digital multimedia receiver with AM/FM tuner (does not play CDs)
• 10.1" capacitive HD anti-glare touchscreen with four-way adjustable mount
• fits single-DIN dash openings
• optional remote control (sold separately — not available at Crutchfield)
• Bluetooth hands-free calling and audio streaming
• High-Resolution audio and High-Resolution wireless LDAC audio support
• built-in ESS digital-to-analog converter
• built-in high-grade 192-kHz / 24-bit digital signal processor

Smartphone features (see Details for info on compatibility with specific smartphones and apps):

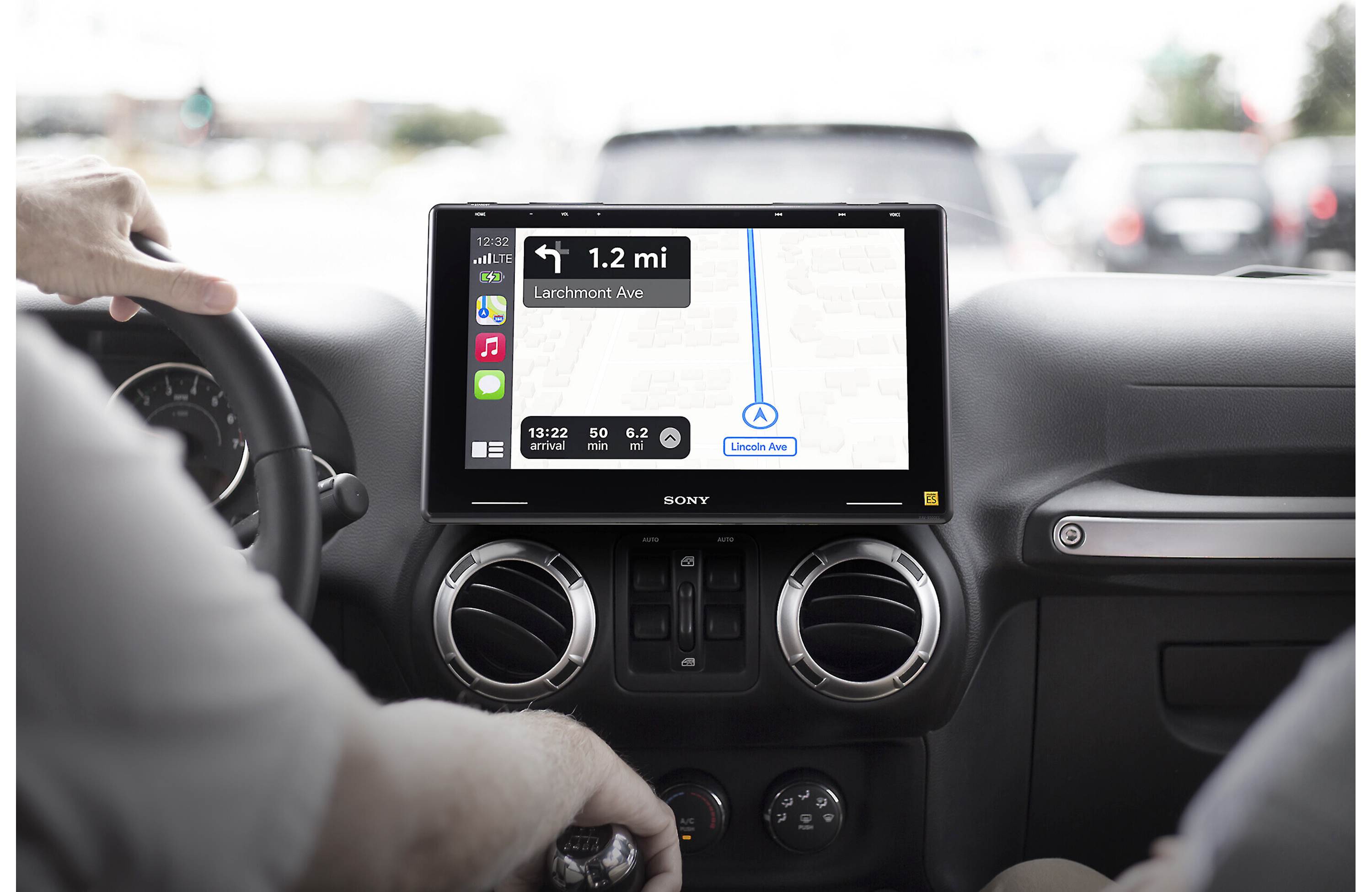

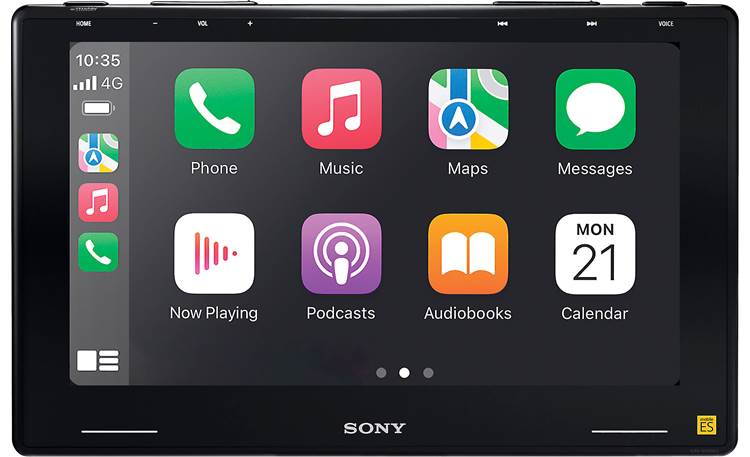

• wired/wireless Apple CarPlay and wired/wireless Android Auto compatible
• wired CarPlay may require software update

Audio/video features:

• plays MP3, WMA, WAV, AAC, FLAC, ALAC, DSF, and DSDIFF music files
• plays ASF, WMV, AVI, MKV, MPEG-4 video files via USB

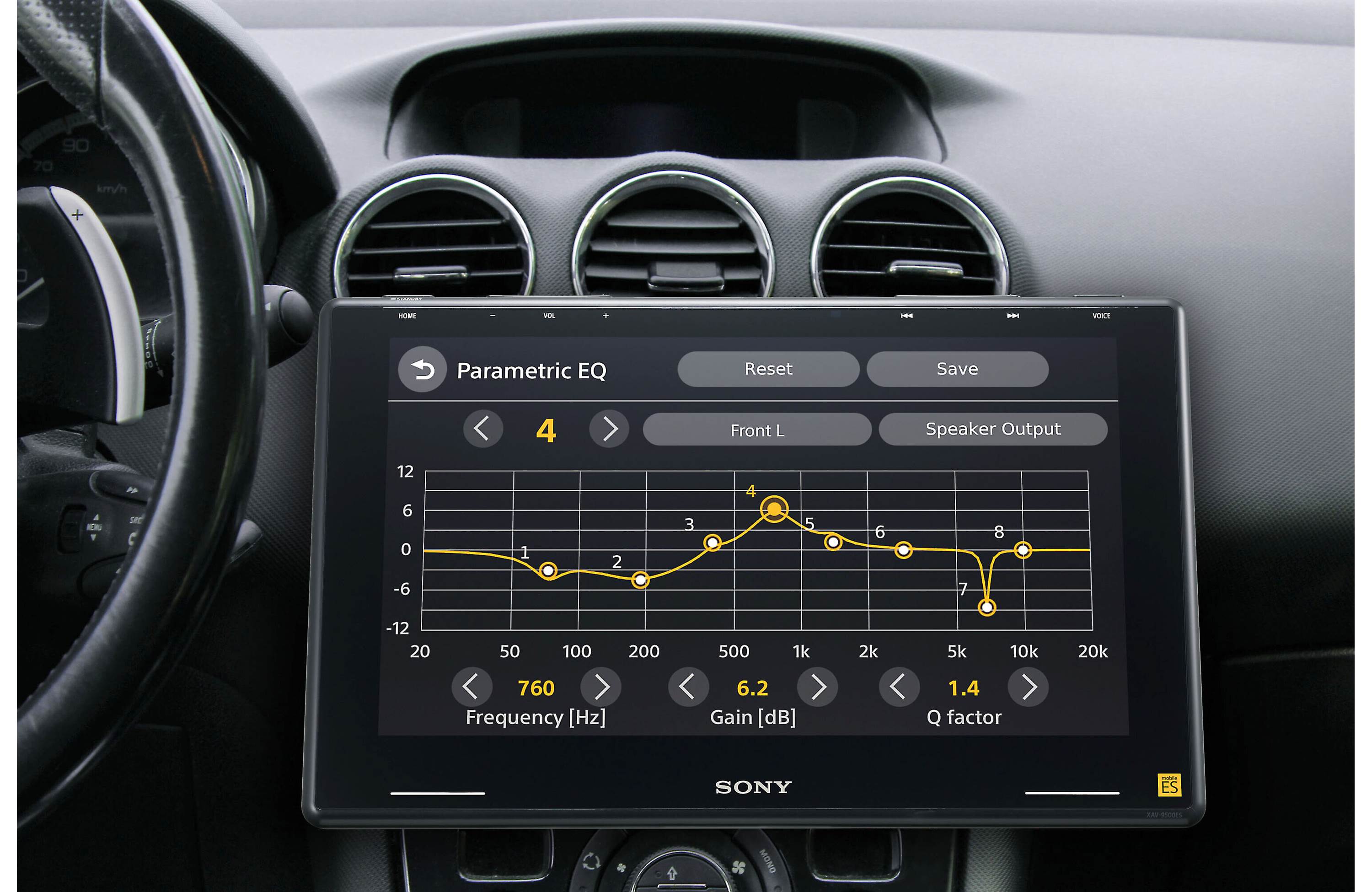

• 14-band graphic equalizer with independent 8-band parametric EQ per channel
• 3-zone crossover

Expandability:

• compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)
• inputs: rear USB Type-C port, backup cam input, two additional camera inputs
• outputs: 6-channel preamp outputs (5-volt front, rear, sub)

Other information:

• Important Note — Monitor dimensions are 10.635" x 6.695". Before ordering, check for possible interference with your dash.
• wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
• built-in internal amp (20 watts RMS CTA-2006/55 peak x 4 channels)
• compatible with most factory steering wheel audio controls (adapter required)
• works with iDataLink Maestro module
  • displays engine performance and other vehicle data on touchscreen
  • retains factory features in a wide selection of vehicles
• warranty: 3 years
