XAV-AX3700

Product highlights:

• digital multimedia receiver with AM/FM tuner
• 6.95" resistive touchscreen display
• Bluetooth hands-free calling and audio streaming
• single-DIN rear chassis — fits double-DIN dash openings

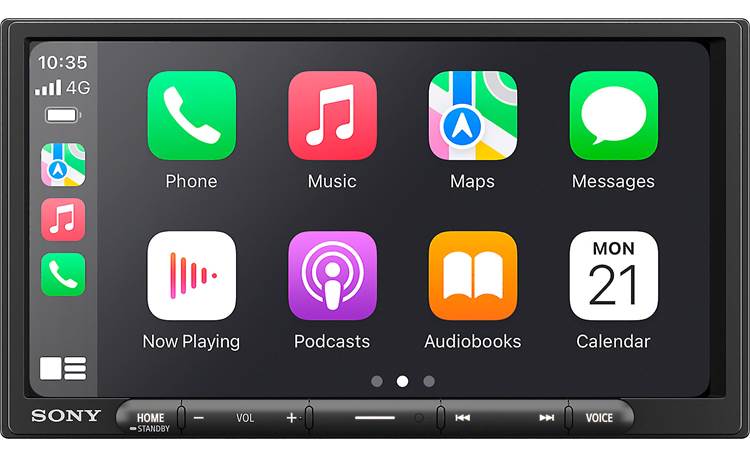

• works with Apple CarPlay only (requires wired connection)

Audio/video features:

• plays media from USB memory devices
• hi-res audio file compatibility: FLAC, WAV, ALAC, DSD
• 14-band graphic equalizer
• 5-channel time alignment capability
• individual front, rear, and sub crossovers
• selectable clock display (analog, digital, none)

Expandability:

• compatible with SiriusXM's aftermarket satellite radio tuner (sold separately, subscription required)
• inputs: rear USB-C input, rear-view camera input
• outputs: 5-channel preamp outputs (2-volt front, rear, mono sub)

Other info:

• wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
• built-in internal amp (20 watts RMS/55 peak x 4 channels)
• CTA-2006 compliant
• compatible with most factory steering wheel audio controls (adapter required)
• works with iDatalink Maestro module
  • retains factory features in a wide selection of vehicles
  • displays engine performance data on touchscreen
