XM-5ES
SKU: 000491
$898.00 $898.00 $998.00
Sale 10.02% $100.00 (10.02%)
In stock: 2
Description



  • 5-channel car amplifier
    • 100 watts RMS x 4 + 450 watts RMS x 1 at 4 ohms
    • 165 watts RMS x 4 + 750 watts RMS x 1 at 2 ohms
    • 330 watts RMS x 2 bridged at 4 ohms + 750 watts RMS x 1 at 2 ohms
  • CTA-2006 compliant
  • Class D amp technology — frequency response: 10-40,000 Hz on front and rear channels
  • variable high-, low-, and bandpass filters (50-5,000 Hz, 12 dB/octave) on front and rear channels
  • variable low-pass filter (50-500 Hz, 24 dB/octave) on subwoofer channel
  • variable subsonic filter (5-50 Hz, 24 dB/octave) on subwoofer channel
  • wired remote bass level control included
    100W x 4 + 450W x 1 RMS output power
    Enjoy dynamic sound with an output power of 100W x 4 (330W x 2 bridged) + 450W x 1 RMS at 4 ohms / 165W x 4 + 750W x 1 RMS at 2 ohms. The highly efficient class-D amplifier boosts your in-car music, providing a variety of speaker configurations of your choice.
    ''
    The Way The Artists Truly Intended
    Listen to the subtlest nuances of studio-quality sound in higher than CD quality with High-Resolution Audio. Feel as if the artist was performing right in front of you. The XM-5ES 5-channel amplifier is engineered to enhance every track — including High-Resolution Audio files.

    A range of premium circuit components work together for ultimate efficiency and pitch-perfect sound reproduction, giving every road trip the soundtrack it deserves.
    Learn more about High-Resolution Audio

    Powerful sound with astonishing clarity
    Sony’s expertise and long years of engineering experience with digital amplifiers has made it possible to realize a compact and powerful amplifier, with uncompromising sound quality.
    ''
    ''

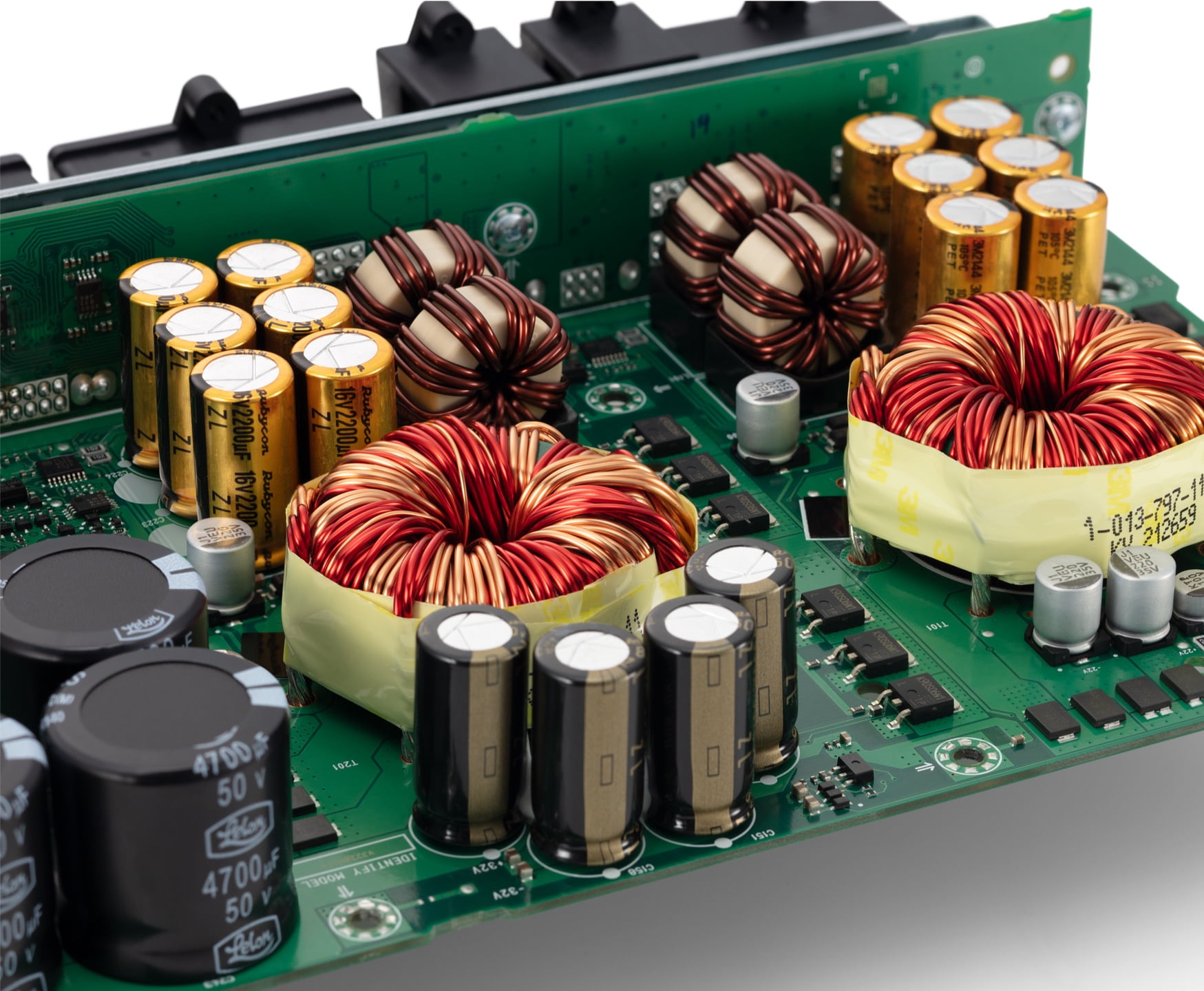

    Optimized power blocks
    The power supply block is optimally designed for low-noise, highly efficient electric power transmission, where the DC converter with a toroidal core transformer is chosen for less electro-magnetic interference. To reproduce delicate ultra-high-frequency sound, each channel block and the class-D amplification are all isolated with their own ground circuitry, minimising any signal interference.

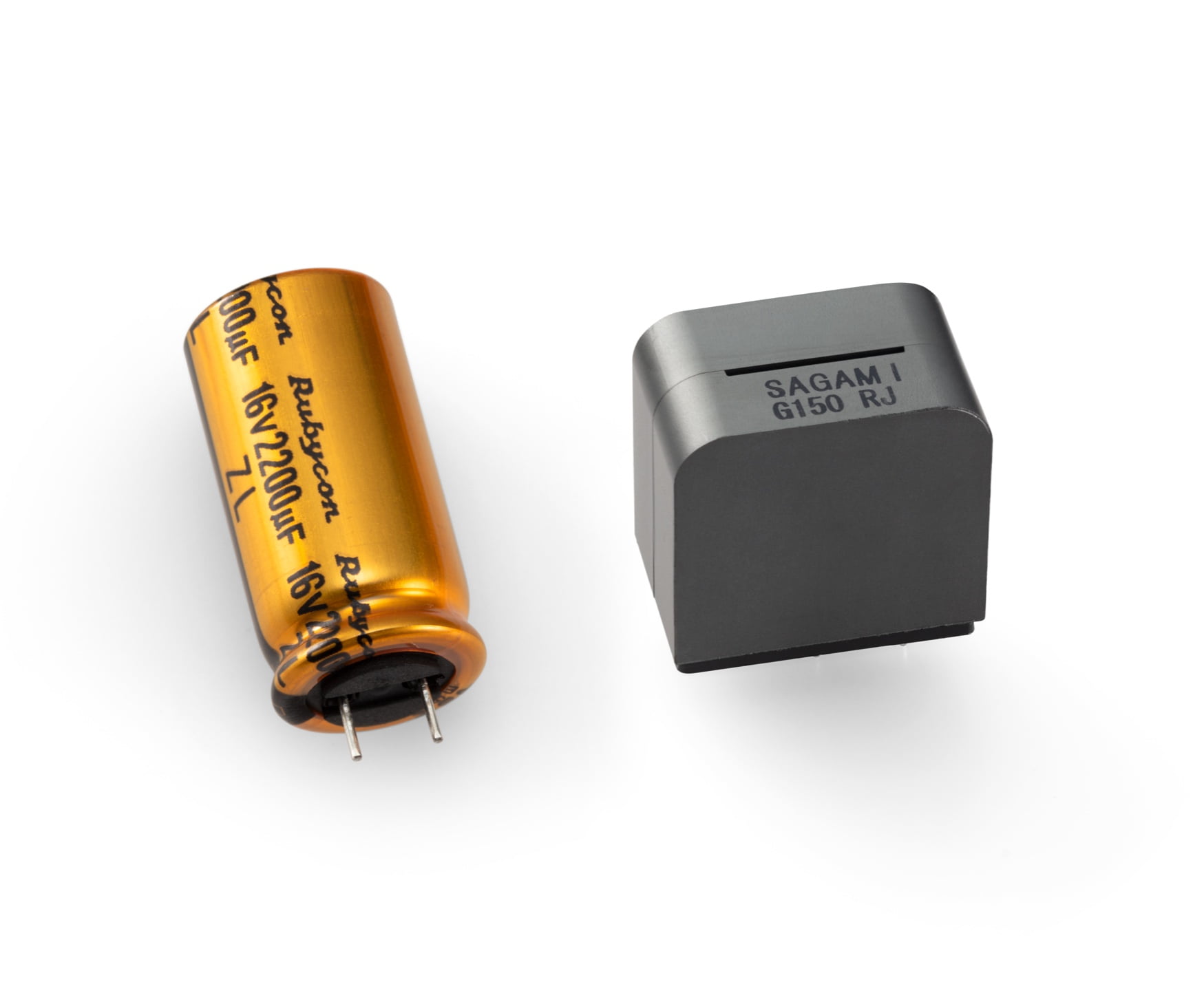

    Select components for superior sound
    The upgraded inductors with OFC wires are selected for lower internal resistance and improved sound character, while the high-capacity electrolytic capacitors contribute to precise and responsive bass.

    ''

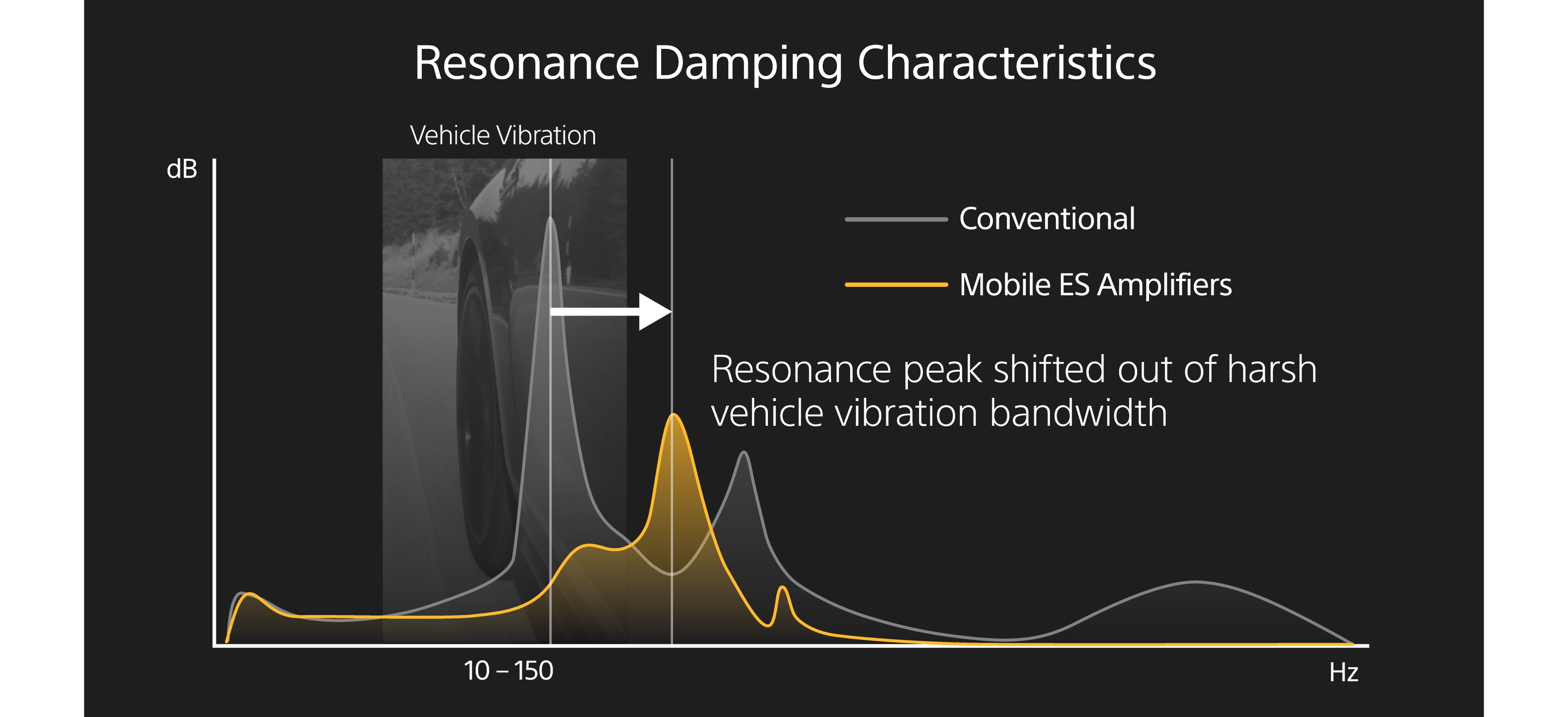

    Sturdily built structures
    The rigid, 1.2mm, cross-braced bottom plate reduces resonance by approximately and shifts resonance peaks away from the harsh vehicle vibration frequency bands, upgrading damping performance dramatically.
    ''
    Enhanced logical control and connection placement
    Controls for adjustments, and placement of connections, are logically placed for easy understanding and use. The carefully considered layout ensures both intuitive operation and installation simplicity.
    ''
    ''

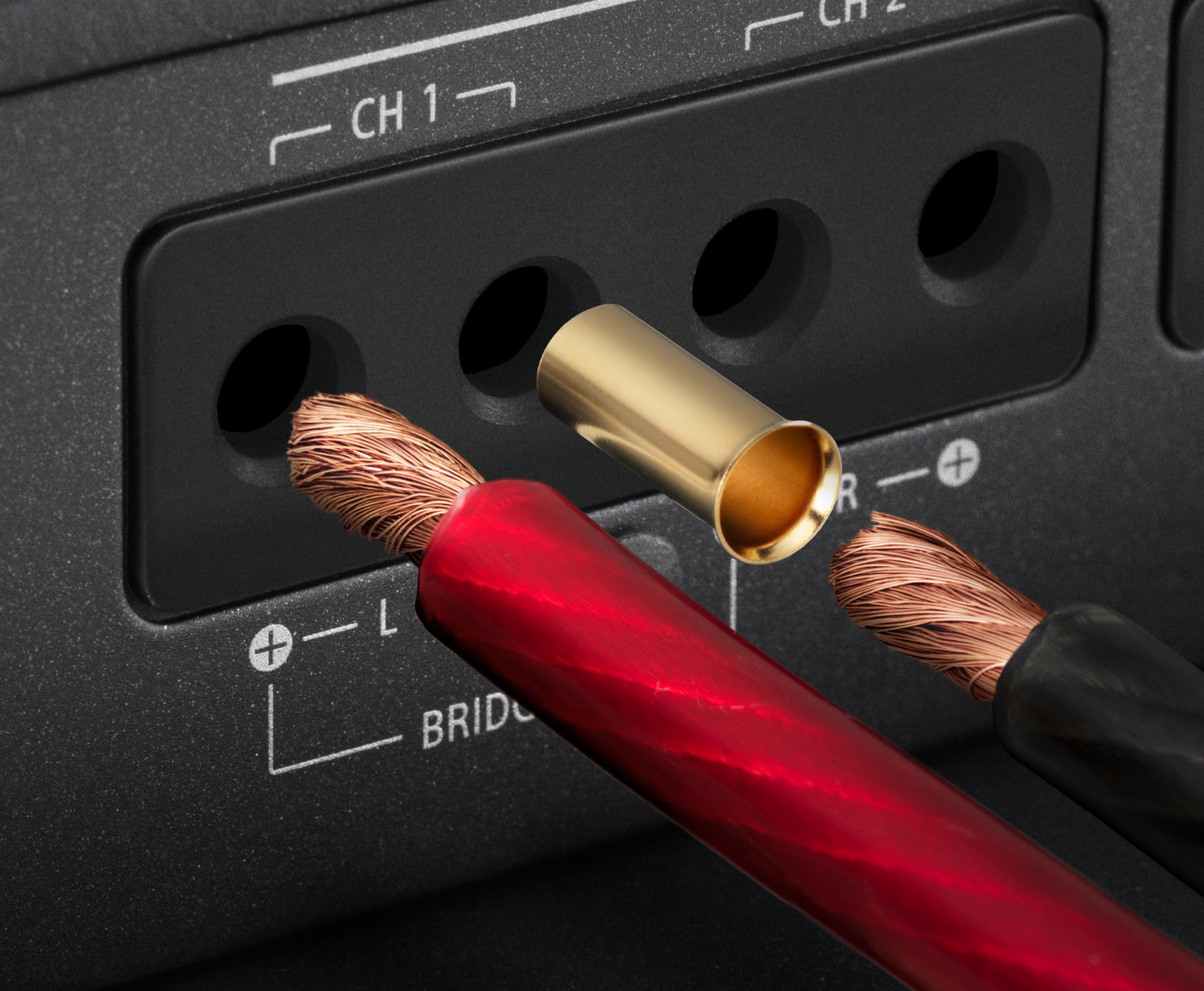

    High-quality speaker terminal
    The speaker terminal features Hex-key screws, providing a durable method of tightening the wire connections while accepting bare wire or wire ferrules (up to AWG #8) for superior electrical performance, high-quality sound, and safe connection.

    Clear labels and values
    The redesigned control panel is logically grouped, and clearly labeled for set up.

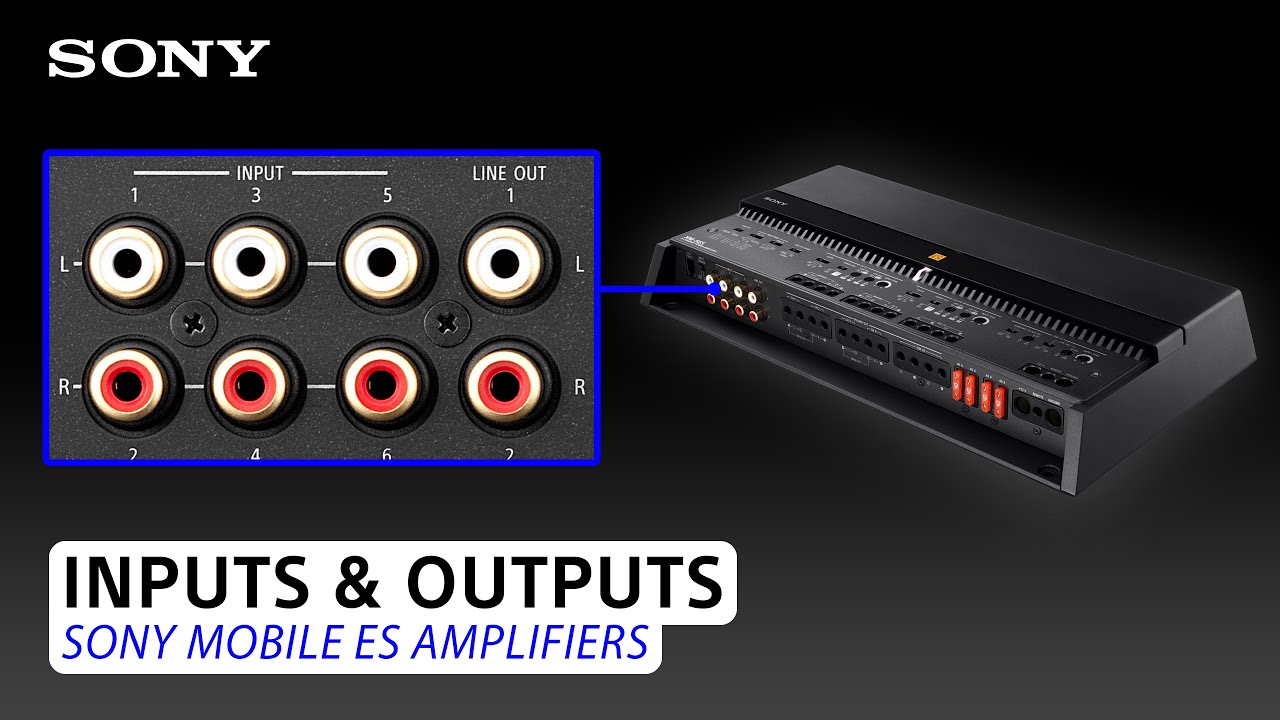

    YouTube Player
    Signal summing for seamless connection to factory audio
    The new signal summing feature combines filtered audio signals from modern factory car audio systems, such as those for the separate tweeter, woofer and subwoofer, accurately amplifying the full stereo frequency range easily. And you can even send the consolidated line-level signal onto other mono or stereo amps in the chain, allowing for flexible installation in various types of vehicles and audio system setups.
